Re: Gmax: Solid box [message #361638 is a reply to message #361550]

Sat, 06 December 2008 07:47

Di3HardNL
Messages: 1273
Registered: December 2006
Location: Netherlands

Karma:

General (1 Star)

If you have the problem that MGamer is talking about then i have the solution for you.

rightclick the mesh (after using boolean tool) and convert to 'editable poly' then play around with the polygons on where you want to have them (if you want more polygons then do bolean again to create more)

When you think your done choose 'element' selection. (the red box)

then in 'Edit Geometry' rollout click 'create' click on the polygons which you want to connect to each other to create a new surface.

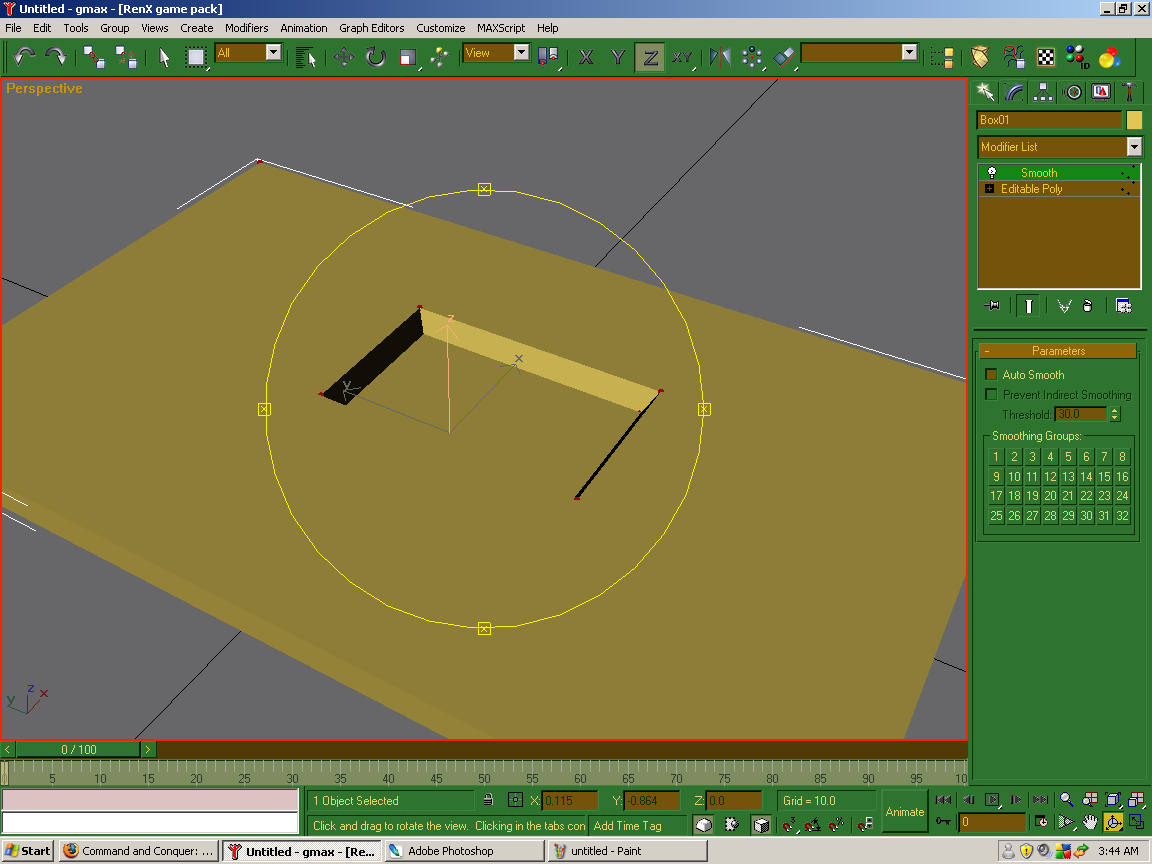

Here a sample, I used boleans 2 times. (not detailed) thats the way i should do it.

1 more tip. If you get black spots on your mesh, select your mesh and go to modifier tab and click on 'smooth' that should fix it Smile

Attachment: screenshot1.PNG
(Size: 86.50KB, Downloaded 181 times)
Attachment: screenshot2.PNG
(Size: 83.87KB, Downloaded 186 times)
